P4 Perimeter Indoor LED Display Screen High Refresh Customized

P4 Perimeter Indoor LED Display Screen High Refresh Customized
P4 Perimeter Indoor LED Display Screen High Refresh Customized

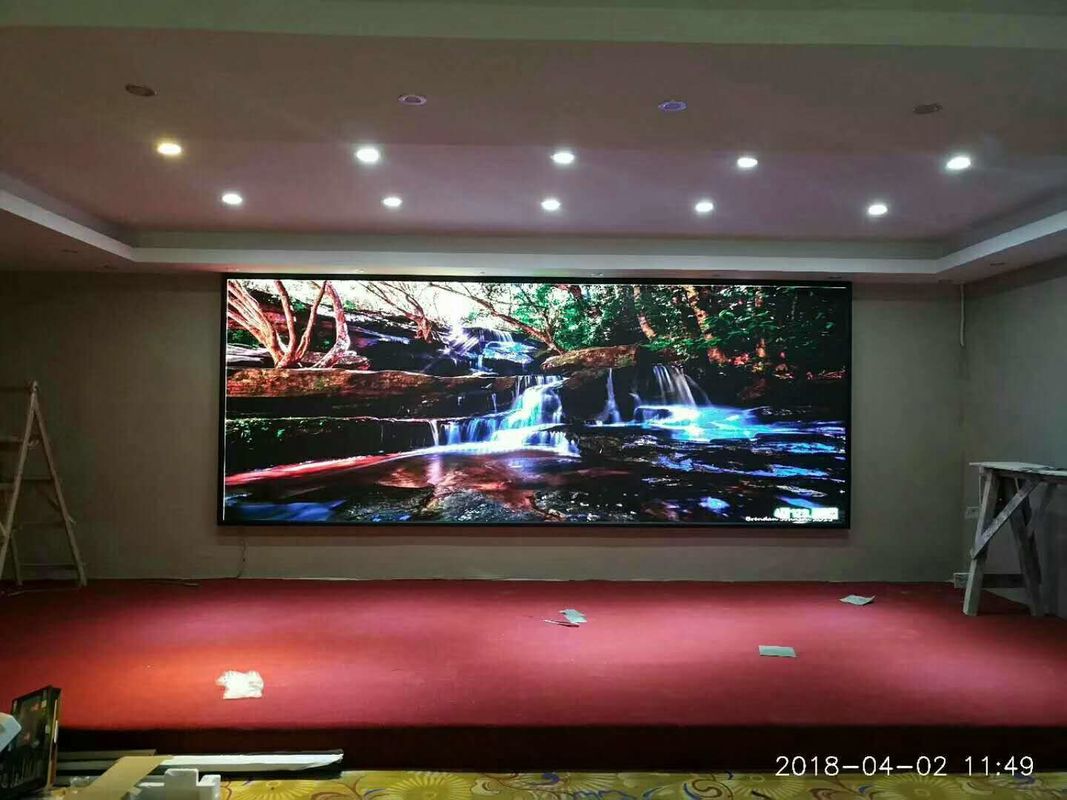

Large Image :  P4 Perimeter Indoor LED Display Screen High Refresh Customized

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TOPVIEW
Model Number: P2.6mm, P2.97, P3.91mm, P4.81mm
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-30 days
Payment Terms: L/C, T/T
Contact Now

P4 Perimeter Indoor LED Display Screen High Refresh Customized

Description
Pixel Pitch: P1.25mm, P1.56mm, P1.875mm, P2mm, P2.5mm, P3mm, P4mm, P5mm, P6mm, P7.62mm, P8mm, P10mm, P12mm, P16mm, P20mm Panel Size: 256mmx128mm
Pixels: 2.5mm Channel: Speed, Lightness
Refresh: High Refresh Characteristic: Single Pixel Correction
Lifetime: ≥100,000 Hours Pixel Density: 40000 Dot/㎡
Ambient Temperature: -20 ~ +40 Degree Screen Size: Customized
Brightness Uniformity: ≧97% Maintainance Method: Front Service
Port: Shenzhen Led Composition: 1R1G1B
Cabinet Material: Die-casting Aluminum
Highlight:

P4 Perimeter Indoor LED Display Screen

,

Customized Indoor LED Display Screen

,

Customized perimeter led display

  • P4-16S Indoor LED Display Specification
    Pixel distance:4(mm) Module size: 256X128(mm) Cabinet size:512×512×70(mm)
    Pixel density:62500dots/㎡ Color: 1R1G1B Module dots: 64*32=1024 DOTS
    Cabinet resolution:128*128 Cabinet size:0.262144m² Cabinet weight :8.39KG±0.05KG
    Main specification
    Best viweing distance:4m～30m H ≧160° V ≥160°
    Ave power consumption＜500W/㎡  Max ＜1000w/㎡ Control way:synchronous control
    Driver: DVI driver Scan method 1/16scan Max power consumption ≤20W
    Frame Frequency≧360Hz Brightness ≧800cd/㎡ Refresh rate ≧1920Hz
    Brightness Adjustment Automatic brightness sensor adjustment 16grade
    Manual adjustment:100grade
    Cooperation system
    WIN98,WINXP,WIN2000,etc
    Video Source
    RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
    Control system
    PCTV card(optional)+sending card+ revieving card+optical fiber transmission(optional)
    MTBF ≧5000Hrs Using life: 75000～100000Hrs defective rate  ＜0.0002 dots
    Model: P4-16S 3 in 1 packaged 2121 led chips



Tag:

dance floor led screen,

stadium led display,

stage led display
