IP45 Waterproof Indoor LED Display Screen Video Aluminum Module P2.5

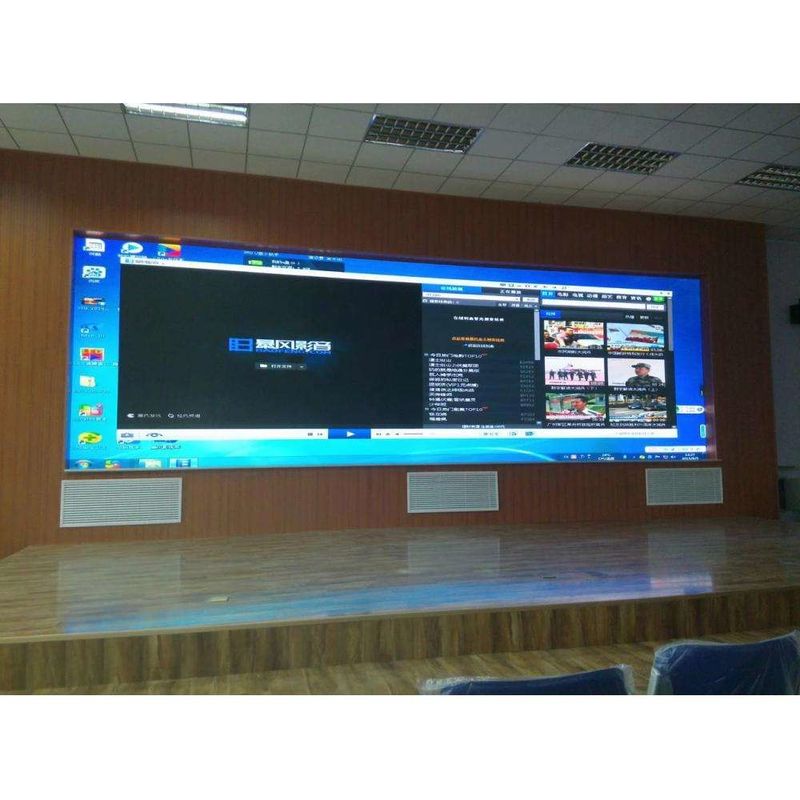

Large Image : IP45 Waterproof Indoor LED Display Screen Video Aluminum Module P2.5

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	TOPVIEW
Model Number:	P2.6mm, P2.97, P3.91mm, P4.81mm

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	1-30 days
Payment Terms:	L/C, T/T

Contact Now

IP45 Waterproof Indoor LED Display Screen Video Aluminum Module P2.5

Description

Material:	Aluminum Module	Color:	Full Color
Pitch:	2.22mm	Function:	Single Light Speed Adjustable
Led Composition:	1R1G1B	Module Thickness:	13mm
Box Size:	1200mm * 675mm *63mm	Pixel Pitch:	P2.5/P3/P4/P5/P6/P7.62/P8/P10/P12/P16/P20
Led Encapsulation:	SMD1010	Max Consumption:	≤380W/square Meter
Horizontal Viewing Angle:	≥ 160°	Control Way:	Synchronization
Refresh:	3840Hz	Ip Rate:	IP45
Module Size:	160mm160mm/192mm192mm/256mm128mm/320mm160mm/320mm*320mm
Highlight:	IP45 Indoor LED Display Screen , Indoor LED Display Screen aluminum module , IP45 Waterproof video led screen

P2.5-32S Indoor LED Display Specification
Pixel distance:2.5(mm)	Module size:160X160(mm)	Cabinet size:640×640(mm)
Pixel density:160000dots/㎡	Color: 1R1G1B	Module dots: 64*64=4096 DOTS
Cabinet resolution:256*256	Cabinet size:0.12m²	Cabinet weight 11.64KG±0.05KG
Main specification
Best viweing distance:2m～30m	H ≧160°	V ≥160°
Ave power consumption＜600W/㎡	Max ＜ 1200w/㎡	Control way:synchronous control
Driver: DVI driver	Scan method 1/32scan	Max power consumption ≤18W
Frame Frequency≧60Hz	Brightness ≧1000cd/㎡	Refresh rate ≧1920Hz
Brightness Adjustment	Automatic brightness sensor adjustment	16grade
Manual adjustment:100grade
Cooperation system
WIN98,WINXP,WIN2000,etc
Video Source
RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
Control system
PCTV card(optional)+sending card+ revieving card+optical fiber transmission(optional)
MTBF ≧5000Hrs	Using life: 75000～100000Hrs	defective rate ＜0.0002 dots
Model: PH2.5-16S	3 in 1 packaged	2121 led chips
