Product Description:
Built with a Pentium4 or above CPU, this LED display screen is designed to deliver seamless performance. The video wall specification ensures that your content is displayed in the highest quality possible.

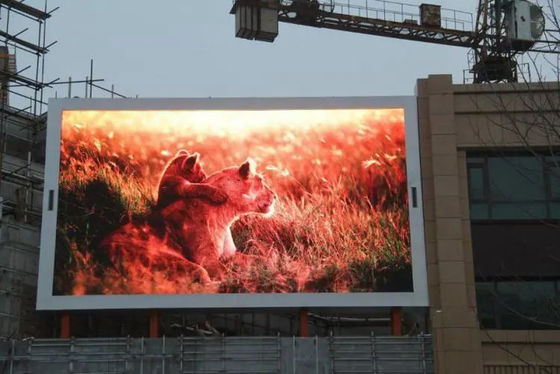

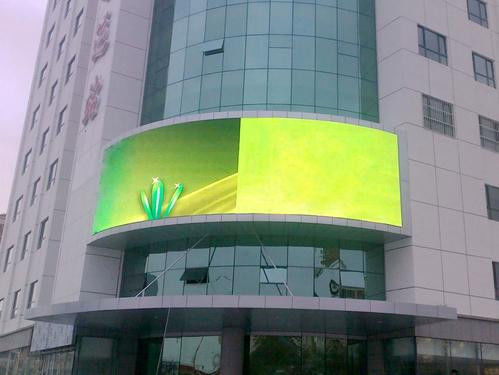

Our Outdoor LED Display Screen is perfect for both indoor and outdoor advertising. Whether you need a new led display for shop or a backdrop led screen for an event, this product will meet all your needs.
The LED type used in this display is SMD 1921/2727/3535, which offers superior brightness and contrast. You can be sure that your content will be displayed in vivid colors that are sure to grab the attention of your audience.
So why wait? Order your Outdoor LED Display Screen today and take your advertising to the next level.
Features:
- Product Name: Outdoor LED Display Screen
- Panel Weight: 28
- Led Lamp: SMD1921
- Led Chip: 3 In 1 Smd
- Control System: Novastar
- Cabinet Material: Die-casting Aluminum
- Available in P5 outdoor LED display
- Also available in P6 LED display
- Suitable for perimeter LED display use
Tech
Module parameters
| 01 |
Module size |
320mm*160mm |
| 02 |
Pixel spacing |
8mm |
| 03 |
Scanning mode |
5S |
| 04 |
Module pixel point |
40 * 20 = 800 points |
| 05 |
Drive IC |
General Brush IC 2037 |
| 06 |
Lamp bead model |
3535 |
| 07 |
Physical density |
15625 points/㎡ |
| 08 |
Pixel point composition |
1R1G1B |
| 09 |
Color |
R,G,B |
| 10 |
Brightness |
≥5000cd/㎡ |
| 11 |
Refresh frequency |
≥1920HZ |
| 12 |
Frame change frequency |
≥60Hz |
| 13 |
Display color |
256 * 256 * 256 = 16777216 color |
| 14 |
Optimal sight distance |
8～100M |
| 15 |
Operating temperature |
-25℃~+55℃ |
| 16 |
Relative humidity |
10%～95% |
| 17 |
Maximum power consumption |
900W/㎡ |
| 18 |
Operating voltage |
220V±10％ ,50/60Hz |
| 19 |
Switching power supply load |
5V/40A,5V/30A |
| 20 |
Screen life |
≥ 100000 hours |
| 21 |
Quality and safety standards |
CE,CCC,ISO9001:2008,ROHS |
| 22 |
Protective measures |
Waterproof silicone |
nical Parameters:
| Display Function |
Video |
| Control System |
Novastar |
| Module Size |
320mm*160mm |
| Specification |
Video Wall |
| Module Size |
250mmx250mm |
| Panel Weight |
28 |
| Led Lamp |
SMD1921 |
| CPU |
Pentium4 Or Above |
| Led Type |
SMD 1921/ 2727/3535 |
| Production Time |
About 25 Days |
Applications:
The P105P6P8P4 LED display screen uses SMD 1921/2727/3535 LEDs, which provide exceptional clarity and brightness for outdoor applications. Its panel size of 960MM*960MM is large enough to display high-quality video content, making it perfect for advertising on a large scale.

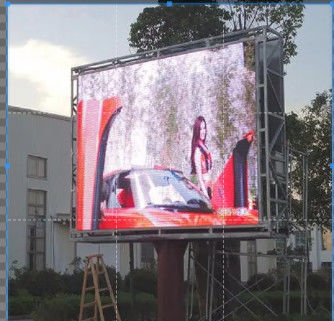

The P6 LED display screen is a popular choice for outdoor advertising due to its high resolution and ability to display clear images and videos even in bright sunlight. This makes it an ideal choice for outdoor events such as concerts, festivals, and sporting events.
Another popular application for the P105P6P8P4 LED display screen is as a perimeter LED display. This type of display is commonly used in sports stadiums and arenas to provide advertising and other important information to spectators. The high resolution and bright lighting of the P6 LED display make it an ideal choice for this type of application.
The P105P6P8P4 LED display screen is also commonly used as an indoor fixed advertising display. Its high resolution and ability to display clear videos and images make it an ideal choice for advertising in shopping malls, airports, and other indoor public spaces. It is also a popular choice for shop owners who want to display their products in a visually appealing way.
Instructions for use
| Project |
Instructions for use |
| Electrostatic protection |
Installation personnel shall wear electrostatic rings and electrostatic gloves, and all tools shall be grounded strictly during assembly. |
| Connection mode |
The module shall be provided with positive and negative silk-screen marks, which shall not be connected reversely, and shall not be connected to 220V AC. |
|
Operation mode
|
It is strictly prohibited to assemble the module, box and the whole screen when the power is on, and it is necessary to operate when the power is completely off to protect personal safety; it is forbidden to touch the display screen when it is on, so as to avoid the breakdown of LED and components by static electricity generated by human friction. |
| Disassembly and transportation |
Do not drop, push, squeeze or press the module to prevent the module from falling and bumping, so as to avoid the breakage of the kit and damage to the lamp beads. |
| Environmental inspection |
The display screen site shall be equipped with a temperature and humidity meter to monitor the surrounding environment of the screen body, so as to find out whether the display screen is affected with damp, moisture and other problems in time. |
|
Use of the display
|
The ambient humidity is within the range of 10% RH ~ 65% RH. It is recommended to open the screen once a day and use it normally for more than 4 hours each time to remove the moisture on the display screen. |
| When the ambient humidity is above 65% RH, it is necessary to dehumidify the environment, and it is recommended to use it normally for more than 8 hours every day, and close the doors and windows to prevent the display screen from being affected with moisture. |
| When the display screen is not used for a long time, it is necessary to preheat and dehumidify the display screen before use to avoid poor lamp caused by dampness. The specific method is as follows: 20% brightness is lit for 2 hours, 40% brightness is lit for 2 hours, 60% brightness is lit for 2 hours, 80% brightness is lit for 2 hours, and 100% brightness is lit for 2 hours, so that the brightness is gradually increased. |
Customization:
Our expert team of technicians and engineers will work with you to customize the size, shape, and features of your stadium LED screen to meet your specific requirements. Whether you need a large outdoor display for a sports stadium or a smaller screen for a public event, we can help you design and build the perfect solution.
Support and Services:
Our Outdoor LED Display Screen product comes with comprehensive technical support and services to ensure maximum performance and longevity:
- 24/7 technical support hotline
- On-site installation and commissioning services
- Ongoing maintenance and repair services
- Remote monitoring and troubleshooting
- Software upgrades and customization
- Training and education for users and technicians
Our team of experienced technicians and engineers are dedicated to providing timely and effective support to meet your needs and exceed your expectations.
