Product Description:

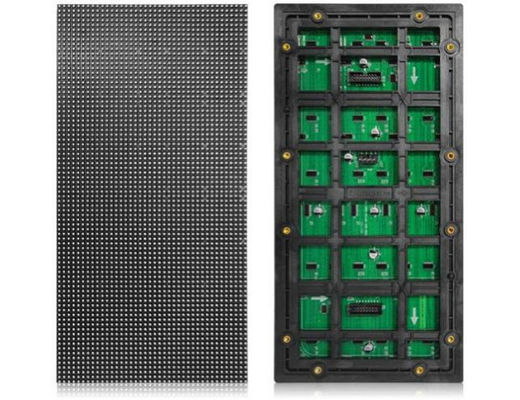

The Outdoor LED Display Screen has a module size of 320mm*160mm, making it easy to install and customize to your specific needs. Whether you're using it for led wall advertising, a stadium perimeter led display or any other outdoor event, the video display function will ensure that your message is seen by everyone who passes by.
Our production time for the Outdoor LED Display Screen is about 25 days, which means you can have your display up and running in no time. And with our high-quality materials and expert craftsmanship, you can be sure that your display will last for years to come.
So why wait? Contact us today to learn more about how our Outdoor LED Display Screen can help you showcase your brand or advertising messages to a large audience. We're here to help you every step of the way.
Features:
- Product Name: Outdoor LED Display Screen
- Led Lamp: SMD1921
- Cabinet Material: Die-casting Aluminum
- Production Time: About 25 Days
- Specification: Video Wall
- Module Size: 250mmx250mm
- Waterproof LED Screen
- Backdrop LED Screen
- Stadium LED Screen
Module parameters
| 01 | Module size | 320mm*160mm |
| 02 | Pixel spacing | 4mm |
| 03 | Scanning mode | 10S |
| 04 | Module pixel point | 80 * 40 = 3200 points |
| 05 | Drive IC | General Brush IC 2037 |
| 06 | Lamp bead model | 1921 |
| 07 | Physical density | 62500 points/㎡ |
| 08 | Pixel point composition | 1R1G1B |
| 09 | Color | R,G,B |
| 10 | Brightness | ≥4200cd/㎡ |
| 11 | Refresh frequency | ≥1920HZ |
| 12 | Frame change frequency | ≥60Hz |
| 13 | Display color | 256 * 256 * 256 = 16777216 color |
| 14 | Optimal sight distance | 5～100M |
| 15 | Operating temperature | -25℃~+55℃ |
| 16 | Relative humidity | 10%～95% |
| 17 | Maximum power consumption | 950W/㎡ |
| 18 | Operating voltage | 220V±10％ ,50/60Hz |
| 19 | Switching power supply load | 5V/60A,5V/40A |
| 20 | Screen life | ≥ 100000 hours |
| 21 | Quality and safety standards | CE,CCC,ISO9001:2008,ROHS |
| 22 | Protective measures | Waterproof silicone |
Technical Parameters:
| Technical Parameter | Description |
|---|
| Power Supply | Meanwell |
| CPU | Pentium4 or Above |
| Module Size | 320mm*160mm |
| LED Lamp | SMD1921 |
| Panel Weight | 28 |
| Module Size | 250mmx250mm |
| Panel Size | 960MM*960MM |
| Control System | Novastar |
| Cabinet Material | Die-casting Aluminum |
| LED Type | SMD 1921/2727/3535 |
Applications:

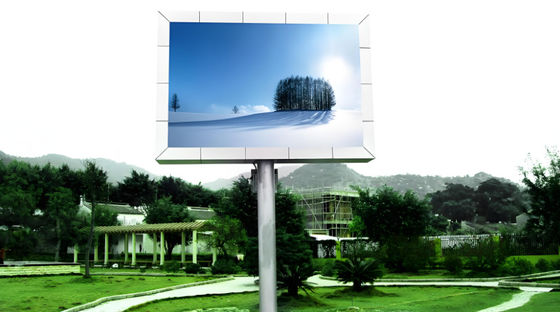

One of the primary use cases for these outdoor LED display screens is for commercial purposes. These screens are perfect for advertising, as they offer high resolution and brightness that can easily capture the attention of passersby. Additionally, the 3 in 1 SMD LED chip ensures that the screen delivers brilliant and vivid colors that can be seen even in direct sunlight. These screens are also perfect for concerts, outdoor events, and festivals, where they can be used to display live performances and other multimedia content.
Another great feature of these outdoor LED display screens is that they are waterproof, which makes them ideal for use in outdoor environments. Whether it is raining or snowing, the screen will continue to function flawlessly, thanks to its waterproof design. This also makes it perfect for use in areas that are prone to flooding or high humidity.
Finally, Kinglight's outdoor transparent LED screen is another excellent option for a wide range of applications. The transparent design allows for a more immersive viewing experience, as viewers can see through the screen to the objects behind it. This makes it perfect for use in museums, retail stores, and other indoor environments where you want to create a unique visual experience.
In terms of production time, these outdoor LED display screens take about 25 days to manufacture. This is due to the high-quality materials and manufacturing processes that are used to ensure that each screen is of the highest quality. Overall, whether you need a waterproof LED screen for outdoor use or a transparent LED screen for indoor use, Kinglight's P4P6P10 outdoor LED display screens are an excellent choice.
Customization:
Customize your outdoor LED display screen with Kinglight's product customization services. Our P4P6P10 models are made with high-quality SMD1921 LED lamps and die-casting aluminum cabinets, ensuring durability and long-lasting performance. Our modules come in a size of 320mm*160mm and are available in SMD 1921/2727/3535 LED types. This video wall is perfect for commercial purposes and is ideal for a p6 outdoor LED display. Our products are made in Shenzhen, China, ensuring top-notch quality and reliability. Contact us today to customize your P6 LED display screen and elevate your outdoor advertising game!
Support and Services:
Our Outdoor LED Display Screen product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians and engineers are available to provide remote and on-site support for installation, configuration, and maintenance of the LED display screen.
We also offer customization services to tailor the LED display screen to meet the specific needs and requirements of our customers. This includes creating customized content and software solutions to deliver a unique and engaging visual experience.
In addition, we provide training and education services to ensure our customers are fully equipped with the knowledge and skills to operate and manage the LED display screen effectively. This includes training on software and hardware operation, content creation, and troubleshooting.
