Product Description:
One unique feature of this display screen is its ability to be wall mounted, which allows for a flexible installation that can be customized to fit your space. The right angle display screen also makes it easy to view from different angles, ensuring that your message is visible to everyone in the room.
Designed with a refresh rate of 3840High Brush, this LED flexible display screen ensures that your content is displayed smoothly and without any lag or delay. This is especially important for businesses that want to display video content or other fast-moving visuals.
In summary, the Indoor LED Display Screen is a top-of-the-line product that provides businesses with the flexibility to create a customized display that fits their unique space. With its high brightness, long lifespan, and easy installation, this LED screen is the perfect choice for bars looking to create an eye-catching display that will keep customers coming back for more.
Features:
- Product Name: Indoor LED Display Screen
- Refresh: 3840High Brush
- Brightness: 1200CD
- Install: Wall Mounted
- Led Lamp: Kinglight
- Usage Environment: Bar
- Product Features:
- LED mirror display screen
- LED circular cake screen
- Tree shaped LED display screen
Technical Parameters:
| Attribute |
Value |
| Brightness |
1200CD |
| Led Lamp |
Kinglight |
| Usage environment |
Bar |
| Refresh |
3840High Brush |
| Install |
Wall Mounted |
| Usage |
Indoor |
Product description
● 1, gray contrast enhancement, so that the blurred picture becomes clearer, with the adjustment technology, very expressive color.HD restore to the point, improve the phenomenon of stutter and smear caused by the inability to restore to the point.
● 2. High contrast, consistent white balance, uniform display color, high picture definition, and enhanced image color.The phenomenon that the tone of the whole picture deviates from the primary color is improved, the picture faithfully displays the color of the material, and the visual effect is enhanced.Ultra-high refresh rate, smooth video, effectively avoid the appearance of scan lines.
● 3. The LED lamp adopts the 2020/1515 black lamp packaged by the high-end chip of the world-renowned manufacturer.And that service life and the display quality of the display screen are fully ensure.
● 4. The effect of indoor full-color display screen is clearer and more delicate, and the resolution can reach more than 1080P;Realize high refresh rate, high gray scale and high lamp utilization rate; no residual image, anti-caterpillar, low power consumption and other functions.
● 5. The indoor full-color display screen is mainly composed of a red LED chip, a green LED chip and a blue LED chip packaged into an image.A matrix is formed after the pixel points are formed, and then the matrix is fixed on a plastic sleeve.
● 6. The indoor full-color display screen contains a driver chip and an input buffer chip.Connect to the LED display control system to display video, images, text messages, etc.
● 7. PCB board adopts multi-layer circuit design to ensure uniform current distribution and good heat dissipation of the lamp board.Prevent the appearance of color blocks under the condition of low gray scale and enhance the ability of anti-electromagnetic interference.
● 8. High-quality 1U gold-plated connectors are used, and there is no flat cable connection in the box, which is stable and reliable.
● 9. Dedicated 16 BIT high gray scale and high ref
Applications:
The P1.53 model is designed with a right angle display screen that provides an immersive viewing experience. The LED flexible display screen is perfect for advertising, entertainment, and other events that require high-quality visuals. The refresh rate of 3840High Brush ensures that the display is smooth and seamless, providing an excellent user experience.
This product is certified by FCC CE, ensuring that it meets the highest standards of quality and safety. Customers can order a minimum of one unit and expect delivery within 20 days of purchase. Payment terms are T/T, making it easy for customers to purchase this product.
The LED lamp used in this display screen is Kinglight, ensuring that it is of the highest quality. The display screen is designed for indoor use, making it perfect for bars and other indoor locations. The usage environment of the P1.53 model is ideal for creating a dynamic and engaging atmosphere, perfect for entertainment and advertising.
In summary, Kinglight's P1.53 indoor LED display screen is perfect for a variety of occasions and scenarios. Its soft screen LED display screen, right angle display screen, and LED flexible display screen make it an excellent choice for advertising, entertainment, and other events. With its high refresh rate, excellent quality LED lamp, and easy installation, this product is an excellent investment for any business.
List of parameters

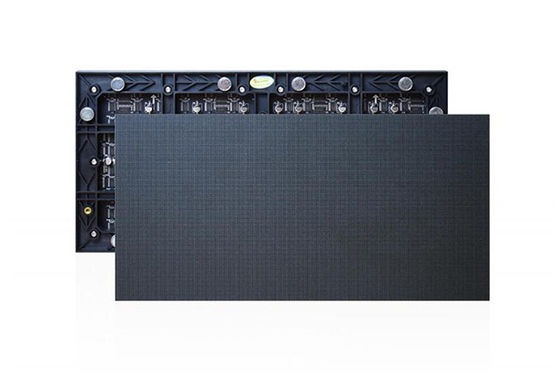

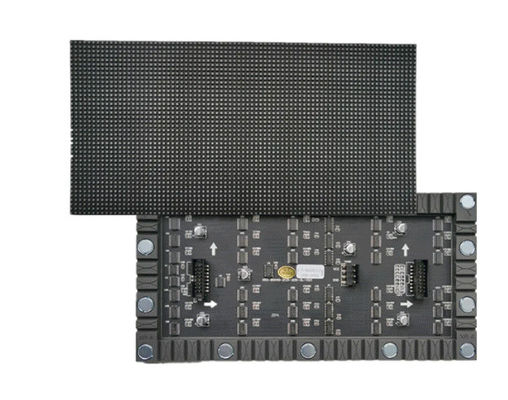

Module technical parameters:
| 01 |
Pixel spacing |
1.538mm |
07 |
Pixel density |
422500(Dots/㎡) |
| 02 |
Module size |
320mm×160mm×15mm |
08 |
Lamp packaging |
1212 |
| 03 |
Resolution |
208×104=21632(Dots) |
09 |
Structural features |
Lamp drive in one |
| 04 |
Scanning mode |
52S |
10 |
Input voltage |
5V |
| 05 |
Drive IC |
6363/16380 |
11 |
Maximum current |
5A |
| 06 |
Pixel composition |
1R1G1B |
12 |
Module weight |
0.18Kg±0.01Kg |
Technical parameters of screen body:
| 01 |
Optimal sight distance |
1m～25m |
09 |
Average power consumption |
≤100W～300W/㎡ |
| 02 |
Horizontal viewing angle |
≥140 ° |
10 |
Maximum power consumption |
≤500W/㎡ |
| 03 |
Vertical viewing angle |
≥130 ° |
11 |
Refresh frequency |
≥3840Hz |
| 04 |
White balance brightness |
≥600CD/㎡ |
12 |
Frame change frequency |
≥60Hz |
| 05 |
Gray scale |
Class 16384 |
13 |
Operating voltage |
220V±15% |
| 06 |
Brightness adjustment |
Class 256 Manual/Auto |
14 |
Storage temperature |
-30℃~+60℃ |
| 07 |
Display color |
4,398 billion species |
15 |
Operating temperature |
-20℃~+50℃ |
| 08 |
Use environment |
Indoor |
16 |
Relative humidity |
10%～95% |
Technical parameters of the box:
| 01 |
Specification of the box |
640mm×480mm×80mm |
04 |
Box area |
0.3072 ㎡ |
| 02 |
Box resolution |
416×312=129792(Dots) |
05 |
Maximum power consumption |
≤178W/㎡ |
| 03 |
Box weight |
7.0Kg±0.05Kg |
06 |
Average power consumption |
≤59W/㎡ |
Customization:
Kinglight brand offers product customization services for their indoor LED display screen, model number P1.53. The product is made in Shenzhen, China and has FCC CE certification. The minimum order quantity is 1 and the delivery time is 20 days. Payment terms are T/T.

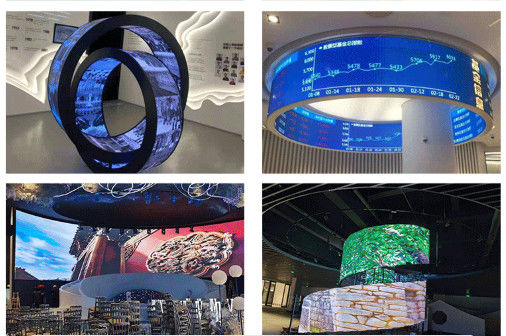

The LED display screen is suitable for indoor usage in a bar environment and can be wall-mounted. It has a high brush refresh rate of 3840 and a brightness of 1200CD. The product customization services allow for a right angle display screen or irregular circular screen to be created according to the customer's specifications.
Support and Services:
Our Indoor LED Display Screen product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction.
Our team of experienced technicians is available to provide troubleshooting assistance, software updates, and maintenance services to keep your display screen running smoothly.
We also offer customization services to meet your specific needs, including designing and programming unique content for your display screen.
Additionally, we provide training services to help you and your staff effectively operate and maintain the display screen.
