Product Description:
The Soft screen LED display screen is not just any ordinary display screen, it is designed in a unique tree-shaped form that makes it stand out from other conventional LED display screens. This feature creates an aesthetic appeal and makes it an excellent addition to any indoor setting.
But the Soft screen LED display screen is more than just an attractive display screen. It is also a highly functional device that is perfect for displaying images, videos, and other visual content. Its LED mirror display screen technology ensures that the display screen is not affected by external light sources, providing crystal-clear visuals at all times.
Installation of the Soft screen LED display screen is easy and straightforward. It is designed to be wall-mounted, making it an excellent option for places with limited space. The display screen is also lightweight, which makes it easy to move around and install.
Our Soft screen LED display screen is perfect for bars, where high-quality visuals are essential to creating the perfect atmosphere. With its unique tree-shaped design, LED mirror display screen technology, and exceptional brightness, the Soft screen LED display screen is a must-have for any indoor space.
Features:
- Product Name: Indoor LED Display Screen
- Usage: Indoor
- Refresh: 3840High Brush
- Brightness: 1200CD
- Usage Environment: Bar
- Install: Wall Mounted
- Features:
- LED mirror display screen
- LED circular cake screen
- Right angle display screen
Technical Parameters:
| Product Name |
Indoor LED Display Screen |
| Usage |
Indoor |
| Brightness |
1200CD |
| Refresh Rate |
3840High Brush |
| LED Lamp |
Kinglight |
| Usage Environment |
Bar |
| Installation |
Wall Mounted |
Applications:
One of the most unique aspects of this product is its ability to be used as an irregular LED display screen. This means that it can be shaped and configured in a variety of different ways, making it ideal for use in a wide range of environments. Whether you need an irregular circular screen for a concert or event, or a right angle display screen for a retail setting, this product has you covered.
In addition to its versatile design, the P1.53 indoor LED display screen offers a range of features that make it an excellent choice for any application. With a brightness of 1200CD, it delivers crisp, clear images that are easy to see from a distance. And with a refresh rate of 3840High Brush, it ensures that even the most fast-paced content will be displayed smoothly and without delay.
Kinglight's indoor LED display screen is also built to last. Made with high-quality materials and featuring Kinglight LED lamps, this product is designed to withstand even the most demanding environments. And with FCC CE certification and a minimum order quantity of just one, you can rest assured that you are getting a product that meets the highest standards of quality and safety.
Installing the P1.53 indoor LED display screen is a breeze thanks to its wall-mounted design. And with a delivery time of just 20 days and payment terms of T/T, you can have your new display up and running in no time.
In short, whether you need an irregular LED display screen for a concert, an irregular circular screen for a trade show, or a right angle display screen for a retail setting, Kinglight's P1.53 indoor LED display screen is the perfect choice. With its advanced features, high-quality construction, and versatile design, this product is sure to exceed your expectations.
List of parameters

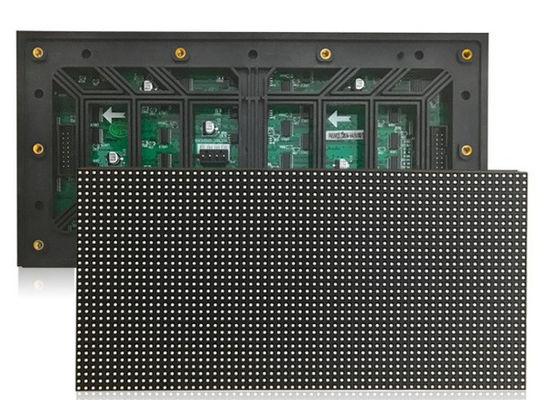

Module technical parameters:
| 01 |
Pixel spacing |
1.538mm |
07 |
Pixel density |
422500(Dots/㎡) |
| 02 |
Module size |
320mm×160mm×15mm |
08 |
Lamp packaging |
1212 |
| 03 |
Resolution |
208×104=21632(Dots) |
09 |
Structural features |
Lamp drive in one |
| 04 |
Scanning mode |
52S |
10 |
Input voltage |
5V |
| 05 |
Drive IC |
6363/16380 |
11 |
Maximum current |
5A |
| 06 |
Pixel composition |
1R1G1B |
12 |
Module weight |
0.18Kg±0.01Kg |
Technical parameters of screen body:
| 01 |
Optimal sight distance |
1m～25m |
09 |
Average power consumption |
≤100W～300W/㎡ |
| 02 |
Horizontal viewing angle |
≥140 ° |
10 |
Maximum power consumption |
≤500W/㎡ |
| 03 |
Vertical viewing angle |
≥130 ° |
11 |
Refresh frequency |
≥3840Hz |
| 04 |
White balance brightness |
≥600CD/㎡ |
12 |
Frame change frequency |
≥60Hz |
| 05 |
Gray scale |
Class 16384 |
13 |
Operating voltage |
220V±15% |
| 06 |
Brightness adjustment |
Class 256 Manual/Auto |
14 |
Storage temperature |
-30℃~+60℃ |
| 07 |
Display color |
4,398 billion species |
15 |
Operating temperature |
-20℃~+50℃ |
| 08 |
Use environment |
Indoor |
16 |
Relative humidity |
10%～95% |
Technical parameters of the box:
| 01 |
Specification of the box |
640mm×480mm×80mm |
04 |
Box area |
0.3072 ㎡ |
| 02 |
Box resolution |
416×312=129792(Dots) |
05 |
Maximum power consumption |
≤178W/㎡ |
| 03 |
Box weight |
7.0Kg±0.05Kg |
06 |
Average power consumption |
≤59W/㎡ |
Customization:
Our customization services offer an Irregular circular screen, Right angle display screen and LED flexible display screen to suit your specific needs. The minimum order quantity is 1 and the delivery time is 20 days. Payment terms are T/T.
The Indoor LED Display Screen has a brightness of 1200CD and is designed for indoor use in environments such as bars. It can be wall-mounted for easy installation. The LED lamp used in the product is also manufactured by Kinglight.
Product description
● 1, gray contrast enhancement, so that the blurred picture becomes clearer, with the adjustment technology, very expressive color.HD restore to the point, improve the phenomenon of stutter and smear caused by the inability to restore to the point.
● 2. High contrast, consistent white balance, uniform display color, high picture definition, and enhanced image color.The phenomenon that the tone of the whole picture deviates from the primary color is improved, the picture faithfully displays the color of the material, and the visual effect is enhanced.Ultra-high refresh rate, smooth video, effectively avoid the appearance of scan lines.
● 3. The LED lamp adopts the 1212 black lamp packaged by the high-end chip of the world-renowned manufacturer.And that service life and the display quality of the display screen are fully ensure.
● 4. The effect of indoor full-color display screen is clearer and more delicate, and the resolution can reach more than 1080P;Realize high refresh rate, high gray scale and high lamp utilization rate; no residual image, anti-caterpillar, low power consumption and other functions.
● 5. The indoor full-color display screen is mainly composed of a red LED chip, a green LED chip and a blue LED chip packaged into an image.A matrix is formed after the pixel points are formed, and then the matrix is fixed on a plastic sleeve.
● 6. The indoor full-color display screen contains a driver chip and an input buffer chip.Connect to the LED display control system to display video, images, text messages, etc.
● 7. PCB board adopts multi-layer circuit design to ensure uniform current distribution and good heat dissipation of the lamp board.Prevent the appearance of color blocks under the condition of low gray scale and enhance the ability of anti-electromagnetic interference.
● 8. High-quality 1U gold-plated connectors are used, and there is no flat cable connection in the box, which is stable and reliable.
● 9. Dedicated 16 BIT high gray scale and high refresh drive constant current IC is used for drive and control, with special blanking circuit to protect LED.Prevent surge leakage.
● 10. The system controls and drives the driver chips of red, green and blue LEDs, which can form 4398 billion color transformations.
● 11. Unit boards and boxes can be spliced in horizontal and vertical directions to form display screens of different sizes.
● 12. Convenient and quick installation and disassembly, saving more cost.
