Product Description:
The screen is equipped with Kinglight LED lamps, which provide a high-quality, clear and bright image. The refresh rate of the screen is 3840High Brush, which ensures that the images are displayed smoothly and without any lag.
The Indoor LED Display Screen is designed specifically for indoor use. The Soft screen LED display screen ensures that the screen is gentle on the eyes and does not cause any strain, even when viewed for extended periods.
The installation of the screen is hassle-free. It can be easily mounted on walls, which makes it easy to integrate into the existing décor of your bar.
Our LED display screen is the perfect addition to your bar environment. The Soft screen LED display screen provides a comfortable viewing experience, while the high-quality image ensures that your customers can enjoy their favorite shows and events in crystal clear detail.
Whether you're looking to entertain your customers with live sports events, music videos, or movies, our Indoor LED Display Screen is the perfect solution. It provides a unique viewing experience that is sure to impress your customers and keep them coming back for more.
So why wait? Order your Indoor LED Display Screen today and take your bar experience to the next level!
Features:
- Product Name: Indoor LED Display Screen
- Led Lamp: Kinglight
- Usage environment: Bar
- Brightness: 1200CD
- Usage: Indoor
- Refresh: 3840High Brush
- Features:
- LED flexible display screen
- Irregular LED display screen
- Tree shaped LED display screen
Technical Parameters:
| Product Attribute |
Value |
| Brightness |
1200CD |
| Usage Environment |
Bar |
| Install |
Wall Mounted |
| LED Lamp |
Kinglight |
| Usage |
Indoor |
| Refresh |
3840High Brush |
This product is an Irregular LED display screen suitable for usage in bars. It is wall-mounted and uses Kinglight LED lamps. The screen has a high refresh rate of 3840 and is suitable for indoor use. Additionally, it can be used as an LED circular cake screen or a right angle display screen.
List of parameters
Module technical parameters:
| 01 |
Pixel spacing |
1.875mm |
07 |
Pixel density |
284444(Dots/㎡) |
| 02 |
Module size |
240mm×240mm×15mm |
08 |
Lamp packaging |
1515 |
| 03 |
Resolution |
128×128=16384(Dots) |
09 |
Structural features |
Lamp drive in one |
| 04 |
Scanning mode |
32S |
10 |
Input voltage |
5V |
| 05 |
Drive IC |
16208 |
11 |
Maximum current |
6.5A |
| 06 |
Pixel composition |
1R1G1B |
12 |
Module weight |
0.14Kg±0.01Kg |
Technical parameters of screen body:
| 01 |
Optimal sight distance |
1m～28m |
09 |
Average power consumption |
≤100W～300W/㎡ |
| 02 |
Horizontal viewing angle |
≥140 ° |
10 |
Maximum power consumption |
≤500W/㎡ |
| 03 |
Vertical viewing angle |
≥130 ° |
11 |
Refresh frequency |
≥1920Hz |
| 04 |
White balance brightness |
≥600CD/㎡ |
12 |
Frame change frequency |
≥60Hz |
| 05 |
Gray scale |
Class 16384 |
13 |
Operating voltage |
220V±15% |
| 06 |
Brightness adjustment |
Class 256 Manual/Auto |
14 |
Storage temperature |
-30℃~+60℃ |
| 07 |
Display color |
4,398 billion species |
15 |
Operating temperature |
-20℃~+50℃ |
| 08 |
Use environment |
Indoor |
16 |
Relative humidity |
10%～95% |
Technical parameters of the box:
| 01 |
Specification of the box |
480mm×480mm×75mm |
04 |
Box area |
0.2304 ㎡ |
| 02 |
Box resolution |
256×256=65536(Dots) |
05 |
Maximum power consumption |
≤200W/㎡ |
| 03 |
Box weight |
6.7Kg±0.05Kg |
06 |
Average power consumption |
≤80W/㎡ |
Applications:

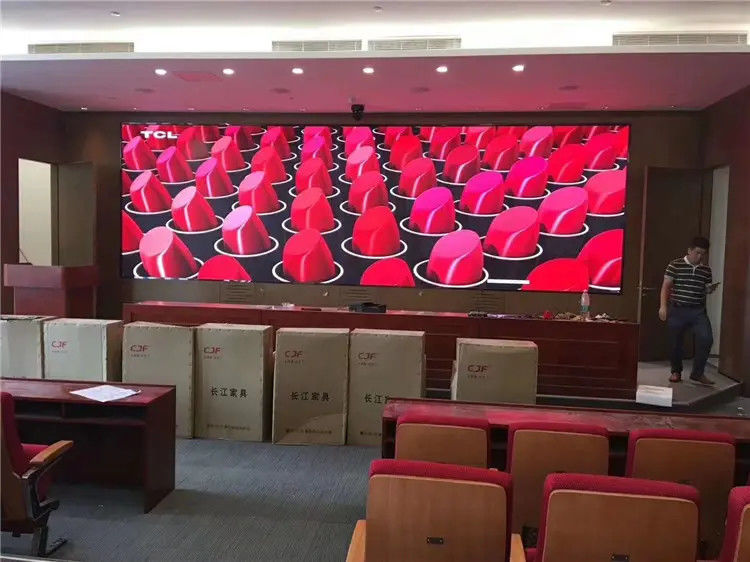

One of the product's application scenarios is in bars. The indoor LED display screen can be mounted on the wall and used to display promotional content or live broadcasts of sporting events. The high refresh rate ensures that the display is smooth and flicker-free, providing an immersive viewing experience for customers.
Another application scenario for the kinglight P1.875 Indoor LED Display Screen is in event venues. The irregular circular screen design can be used to create a unique and eye-catching display for concerts or conferences. The LED spherical display screen can be hung from the ceiling, providing an immersive experience for attendees.
The product is also suitable for use in retail environments. The irregular LED display screen can be used to showcase products or promotions, attracting customers' attention and increasing sales. The high-quality display ensures that the content is clear and easy to read, even from a distance.
The kinglight P1.875 Indoor LED Display Screen is FCC and CE certified, ensuring that it meets the highest standards of quality and safety. The product has a minimum order quantity of 1 and a delivery time of 20 days. Payment terms are T/T, making it easy for customers to purchase this product.
Product description
● 1, gray contrast enhancement, so that the blurred picture becomes clearer, with the adjustment technology, very expressive color.HD restore to the point, improve the phenomenon of stutter and smear caused by the inability to restore to the point.
● 2. High contrast, consistent white balance, uniform display color, high picture definition, and enhanced image color.The phenomenon that the tone of the whole picture deviates from the primary color is improved, the picture faithfully displays the color of the material, and the visual effect is enhanced.Ultra-high refresh rate, smooth video, effectively avoid the appearance of scan lines.
● 3. The LED lamp adopts the 1515 black lamp packaged by the high-end chip of the world-renowned manufacturer.And that service life and the display quality of the display screen are fully ensure.
● 4. The effect of indoor full-color display screen is clearer and more delicate, and the resolution can reach more than 1080P;Realize high refresh rate, high gray scale and high lamp utilization rate; no residual image, anti-caterpillar, low power consumption and other functions.
● 5. The indoor full-color display screen is mainly composed of a red LED chip, a green LED chip and a blue LED chip packaged into an image.A matrix is formed after the pixel points are formed, and then the matrix is fixed on a plastic sleeve.
● 6. The indoor full-color display screen contains a driver chip and an input buffer chip.Connect to the LED display control system to display video, images, text messages, etc.
● 7. PCB board adopts multi-layer circuit design to ensure uniform current distribution and good heat dissipation of the lamp board.Prevent the appearance of color blocks under the condition of low gray scale and enhance the ability of anti-electromagnetic interference.
● 8. High-quality 1U gold-plated connectors are used, and there is no flat cable connection in the box, which is stable and reliable.
● 9. Dedicated 16 BIT high gray scale and high refresh drive constant current IC is used for drive and control, with special blanking circuit to protect LED.Prevent surge leakage.
● 10. The system controls and drives the driver chips of red, green and blue LEDs, which can form 4398 billion color transformations. ● 11. Unit boards and boxes can be spliced in horizontal and vertical directions to form display screens of different sizes.
● 12. Convenient and quick installation and disassembly, saving more cost.
Support and Services:
The Indoor LED Display Screen product technical support and services include:
- Initial installation assistance
- On-site training for setup and operation
- Remote technical support for troubleshooting and issue resolution
- Regular software updates and firmware upgrades
- Customized content creation and management
- Warranty and maintenance services
