Product Description:
The LED chip used in this product is 3 in 1 SMD, ensuring bright and vibrant visuals that can be seen even in broad daylight. The CPU used is Pentium4 or above, which makes it highly efficient and functional.
The cabinet material used is die-casting aluminum, which ensures that the product is sturdy and long-lasting. This also makes it resistant to wear and tear, as well as weather-resistant. This means that the product can be used outdoors, regardless of the weather conditions.

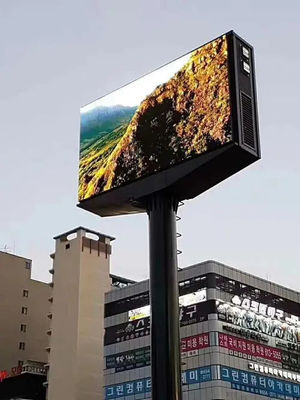

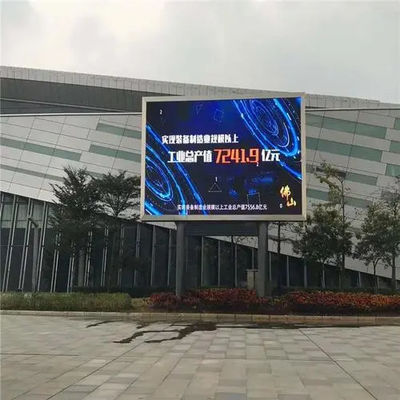

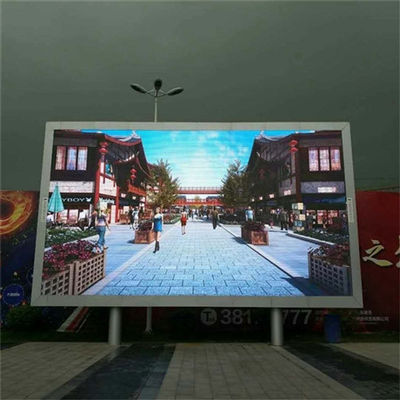

The Outdoor LED Display Screen is a perfect solution for advertising needs. It is ideal for led wall advertising, and its bright and vibrant visuals make it a perfect backdrop led screen. It can be used in stadiums to display live matches, scores, and other information.
The product is easy to install and maintain, making it a great investment for business owners, event organizers, and anyone who is looking for an efficient and reliable way to showcase their content.
Overall, the Outdoor LED Display Screen is a great investment for anyone looking for a high-quality product that is versatile and functional. Its sturdy design, bright and vibrant visuals, and weather-resistant properties make it an ideal choice for anyone looking for a reliable advertising or display solution.
Module parameters
| 01 |
Module size |
320mm*160mm |
| 02 |
Pixel spacing |
4mm |
| 03 |
Scanning mode |
10S |
| 04 |
Module pixel point |
80 * 40 = 3200 points |
| 05 |
Drive IC |
General Brush IC 2037 |
| 06 |
Lamp bead model |
1921 |
| 07 |
Physical density |
62500 points/㎡ |
| 08 |
Pixel point composition |
1R1G1B |
| 09 |
Color |
R,G,B |
| 10 |
Brightness |
≥4200cd/㎡ |
| 11 |
Refresh frequency |
≥1920HZ |
| 12 |
Frame change frequency |
≥60Hz |
| 13 |
Display color |
256 * 256 * 256 = 16777216 color |
| 14 |
Optimal sight distance |
5～100M |
| 15 |
Operating temperature |
-25℃~+55℃ |
| 16 |
Relative humidity |
10%～95% |
| 17 |
Maximum power consumption |
950W/㎡ |
| 18 |
Operating voltage |
220V±10％ ,50/60Hz |
| 19 |
Switching power supply load |
5V/60A,5V/40A |
| 20 |
Screen life |
≥ 100000 hours |
| 21 |
Quality and safety standards |
CE,CCC,ISO9001:2008,ROHS |
| 22 |
Protective measures |
Waterproof silicone |
Features:
- Product Name: Outdoor LED Display Screen
- Cabinet Material: Die-casting Aluminum
- Panel Weight: 28
- Led Lamp: SMD1921
- Module Size: 320mm*160mm
- Display Function: Video
- Perfect for: led screen commercial, led panel for advertising, perimeter led display
Instructions for use
| Project |
Instructions for use |
| Electrostatic protection |
Installation personnel shall wear electrostatic rings and electrostatic gloves, and all tools shall be grounded strictly during assembly. |
| Connection mode |
The module shall be provided with positive and negative silk-screen marks, which shall not be connected reversely, and shall not be connected to 220V AC. |
|
Operation mode
|
It is strictly prohibited to assemble the module, box and the whole screen when the power is on, and it is necessary to operate when the power is completely off to protect personal safety; it is forbidden to touch the display screen when it is on, so as to avoid the breakdown of LED and components by static electricity generated by human friction. |
| Disassembly and transportation |
Do not drop, push, squeeze or press the module to prevent the module from falling and bumping, so as to avoid the breakage of the kit and damage to the lamp beads. |
| Environmental inspection |
The display screen site shall be equipped with a temperature and humidity meter to monitor the surrounding environment of the screen body, so as to find out whether the display screen is affected with damp, moisture and other problems in time. |
|
Use of the display
|
The ambient humidity is within the range of 10% RH ~ 65% RH. It is recommended to open the screen once a day and use it normally for more than 4 hours each time to remove the moisture on the display screen. |
| When the ambient humidity is above 65% RH, it is necessary to dehumidify the environment, and it is recommended to use it normally for more than 8 hours every day, and close the doors and windows to prevent the display screen from being affected with moisture. |
| When the display screen is not used for a long time, it is necessary to preheat and dehumidify the display screen before use to avoid poor lamp caused by dampness. The specific method is as follows: 20% brightness is lit for 2 hours, 40% brightness is lit for 2 hours, 60% brightness is lit for 2 hours, 80% brightness is lit for 2 hours, and 100% brightness is lit for 2 hours, so that the brightness is gradually increased. |
Technical Parameters:
| Product Attribute |
Technical Parameter |
| Led Type |
SMD 1921/ 2727/3535 |
| Module Size |
250mmx250mm |
| Cpu |
Pentium4 Or Above |
| Cabinet Material |
Die-casting Aluminum |
| Module Size |
320mm*160mm |
| Panel Size |
960MM*960MM |
| Panel Weight |
28 |
| Led Chip |
3 In 1 Smd |
| Display Function |
Video |
| Control System |
Novastar |
Applications:
The P105P6P8P4 model is designed to offer high-resolution images and videos, making it an excellent choice for outdoor advertising. The P4 outdoor LED screen has a high pixel density, which allows for superior image quality even in bright sunlight. This makes it an excellent choice for outdoor advertising, where the screen needs to be visible even in bright conditions.
The LED screen P4 outdoor is also perfect for various commercial purposes. It can be used in retail stores, shopping malls, and airports to display advertisements and promotions. The high-quality images and videos displayed on the screen can capture the attention of potential customers, thereby increasing sales and revenue.
The P105P6P8P4 model is made of die-casting aluminum, making it durable and long-lasting. The cabinet material ensures that the LED screen is protected from harsh weather conditions, making it ideal for outdoor advertising. The Meanwell power supply ensures that the LED screen operates efficiently, reducing power consumption and minimizing operational costs.
The LED wall advertising is also an excellent choice for various events and occasions. It can be used in concerts, sports events, and festivals to display live videos and images. The high-quality images and videos displayed on the LED screen can enhance the viewing experience of the audience, making it a popular choice for event organizers.
The P105P6P8P4 model comes with a Pentium4 or above CPU, ensuring that the LED screen operates efficiently and effectively. The production time for the LED screen is about 25 days, making it a fast and reliable choice for businesses and event organizers.
Overall, the P105P6P8P4 model from Kinglight is an excellent choice for businesses and event organizers looking for a reliable and high-quality LED screen commercial. The LED screen P4 outdoor is perfect for outdoor advertising, while the LED wall advertising is ideal for various events and occasions.
Customization:
Our displays are made with the highest quality materials, including SMD 1921/ 2727/3535 LEDs and Pentium4 or above CPUs. The die-casting aluminum cabinet material ensures durability and longevity.
At kinglight, we understand that every project is unique. That's why we offer product customization services to meet your specific needs. With our module size of 250mmx250mm, you can create the perfect display for your outdoor or indoor fixed advertising application.
Our products are proudly made in Shenzhen, China - the hub of the LED display industry. Trust in kinglight for all your Outdoor LED Display Screen needs. Contact us today to learn more about our customization services.
Support and Services:
Our Outdoor LED Display Screen product comes with comprehensive technical support and services to ensure that your display operates at peak performance. Our support team is available to provide assistance with installation, configuration, and troubleshooting of any technical issues that may arise during the lifetime of your display.
In addition to technical support, we also offer a range of services to help you get the most out of your display. These include content creation and management, remote monitoring and management, and on-site maintenance and repair.
Our team of experts can work with you to develop engaging and effective content for your display, ensuring that your message is communicated effectively to your audience. We also offer remote monitoring and management services, which allow us to monitor the health and performance of your display from our offices, and quickly address any issues that may arise.
For those who require on-site support, our team of technicians can provide maintenance and repair services to ensure that your display is always operating at optimal performance. Whether you need routine maintenance or urgent repairs, our team is available to help.
